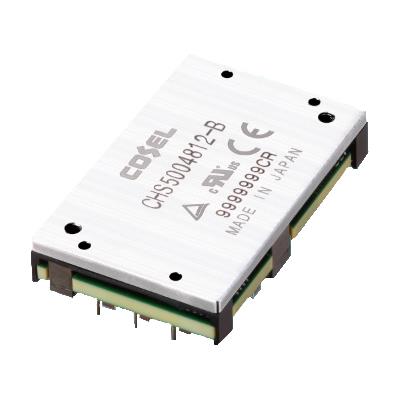

Cosel CHS5004812-R Isolated Intermediate bus converter 504W 12V 42A remote on/off

Width: 36.8 mm (1.449 in)

Height: 9.5 mm (0.374 in)

Length: 58.4 mm (2.299 in)

Industry: Industrial

Adjust Type: Fixed, Adjustable

Output Power: 504 W

Input Voltage: 36 V to 76 V

Mounting Style: Through Hole

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Input Voltage - Max: 76 V

Input Voltage - Min: 36 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 42 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
