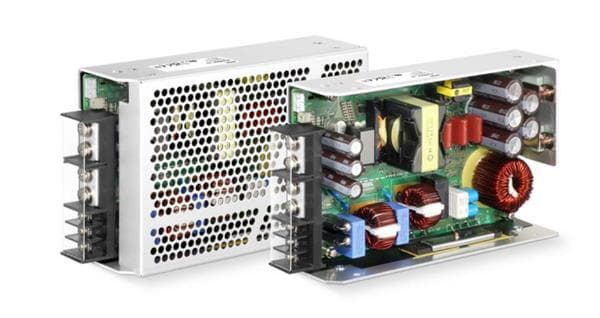

Cosel AEA800F-48 Switching Supplies 48Vdc 609W 12.7A a. 90-170Vac, 816W 17A a. 170-264Vac Medical, 3xPeak Power and OVC

Width: 147 mm (5.787 in)

Height: 41 mm (1.614 in)

Length: 186 mm (7.323 in)

Industry: Medical

Dimensions: 186 mm x 147 mm x 41 mm

Efficiency: 95 %

Unit Weight: 1.3 kg

Output Power: 800 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 45 Hz to 66 Hz

Isolation Voltage: 4 kV

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 12.5 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
