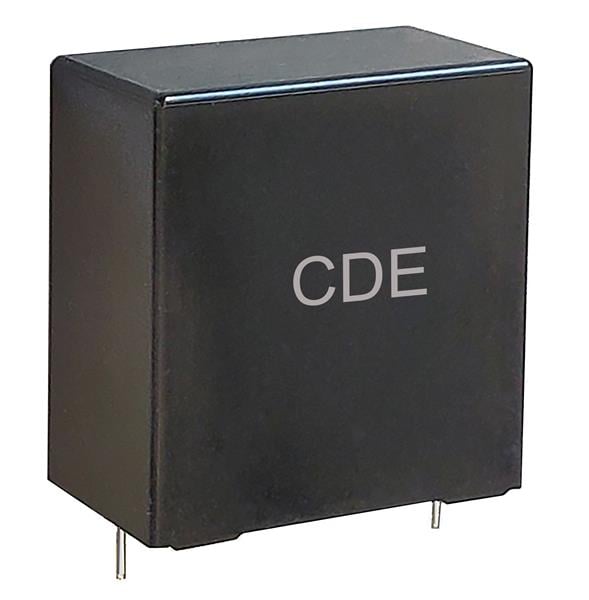

Cornell Dubilier (CDE) ALH224K451A022 Power Film Capacitors 0.22uF 450Vac 32x20x11mm LS=27.5

ESR: 30.9 mOhms

Life: 100000 Hour

Width: 20 mm (0.787 in)

Height: 11 mm (0.433 in)

Length: 32 mm (1.26 in)

Tolerance: 10 %

Dielectric: Polypropylene (PP)

Lead Style: Straight

Capacitance: 0.22 uF

Lead Spacing: 27.5 mm (1.083 in)

Lead Diameter: 0.8 mm

Qualification: AEC-Q200

Number of Pins: 2 Pin

Capacitance - nF: 220 nF

Capacitance - pF: 220000 pF

Termination Style: Snap In

Voltage Rating AC: 450 VAC

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
