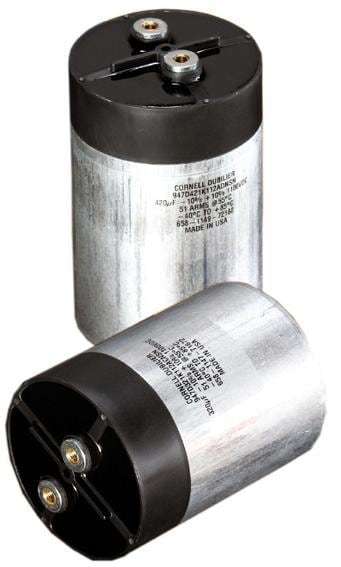

Cornell Dubilier (CDE) 947D191K132AEGSN Polypropylene, High Energy Density, DC Link Capacitors 190uF 1300V 10%
Model947D191K132AEGSN
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
ESR: 2.5 mOhms
Length: 100 mm (3.937 in)
Diameter: 85 mm
Tolerance: 10 %
Dielectric: Polypropylene (PP)
Capacitance: 190 uF
Lead Spacing: 32 mm (1.26 in)
Lead Diameter: M6
Number of Pins: 2 Pin
Termination Style: Insert Threaded
Voltage Rating AC: 230 VAC
Voltage Rating DC: 1.3 kVDC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
