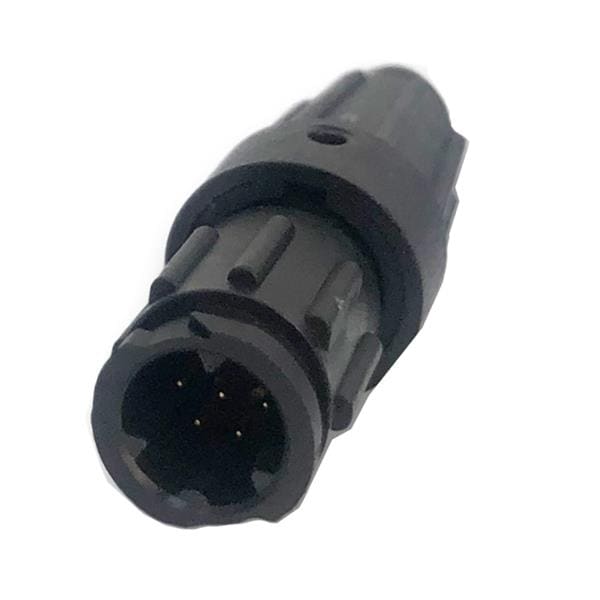

CONXALL W16982-5PG-P-521 Plugs Cable End 5 Pins Solder 521 Backshell
ManufacturerCONXALL(View more products from this manufacturer)
ModelW16982-5PG-P-521
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Height: 13.5 mm
Diameter: 13.5 mm
IP Rating: IP67
Wire Gauge: 26 AWG
Shell Style: Straight
Mating Style: Bayonet
Contact Gender: Pin (Male)
Current Rating: 4 A
Mounting Angle: Straight
Mounting Style: Cable
Shell Material: Thermoplastic (TP)
Voltage Rating: 600 VAC, 600 VDC
Contact Plating: Gold
Contact Material: Brass
Housing Material: Thermoplastic (TP)
Termination Style: Solder Cup
Flammability Rating: UL 94 HB
Number of Positions: 5 Position
