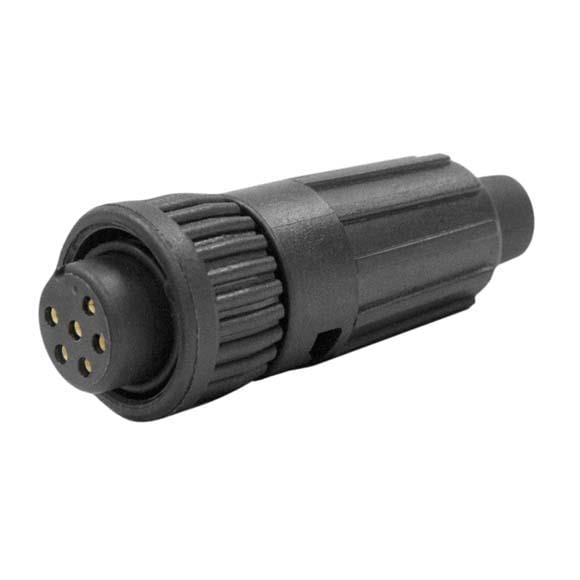

CONXALL 6280-6SG-513 Connectors MINI-CON CABLE #20 CRIMP
ManufacturerCONXALL(View more products from this manufacturer)
Model6280-6SG-513
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Length: 42.4 mm
Diameter: 18 mm
IP Rating: IP67
Wire Gauge: 20 AWG
Shell Style: Plug
Unit Weight: 10.183 g
Mating Style: Bayonet
Mating Cycles: 300 Cycles
Contact Gender: Socket (Female)
Current Rating: 7.5 A
Mounting Angle: Straight
Mounting Style: Cable
Shell Material: Thermoplastic (TP)
Voltage Rating: 600 V
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Termination Style: Crimp
Flammability Rating: UL 94 HB
Number of Positions: 6 Position
