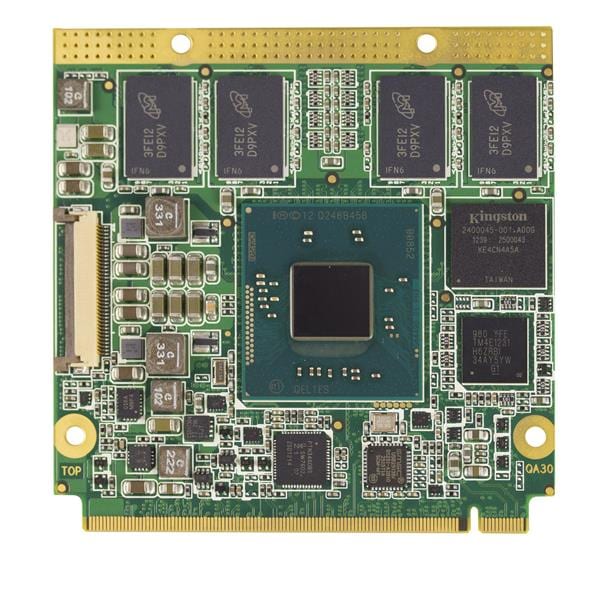

congatec conga-QA3/E3826-2G eMMC4 Computer-On-Modules - COM QSEVEN INTEL ATOM E3826 BAY TRAIL

Flash: 4 GB

Chipsets: Integrated SoC

Frequency: 1.46 GHz

Dimensions: 70 mm x 70 mm

Form Factor: Qseven

Memory Size: 4 GB

Memory Type: DDR3L-1066

Unit Weight: 66.862 g

Cache Memory: 1 MB

Installed RAM: 1 MB

Processor Type: Atom E3826

Processor Brand: Intel

Processor Series: Intel Atom E3800

Power Consumption: 12 W

Description/Function: Qseven module with Intel Atom E3826 dual core processor with 1.46GHz, 1MB L2 cache, 2GB 1066MT/s DDR3L onboard memory and 4GB eMMC onboard flash

Maximum RAM Capacity: 1 MB

On-Board Storage Size: 4 GB

On-Board Storage Type: eMMC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
