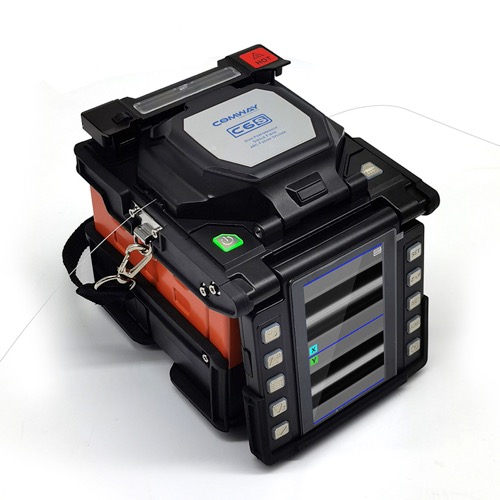

Comway C6S Fusion Splicer (Splicing Time 5~10s)

Size & Weight: D156×W135×H149(mm), 2.0kg (2.2kg with battery)

Fiber Alignment: High precision PAS alignment

Fiber Type: SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)

Splice Mode: Single fiber

Fiber Diameter: Cladding diameter 80-150µm, coating 100~3000µm

Cleave Length: 250µm cladding diameter 8-16mm, over 250µm cladding diameter 16mm

Splicing Programs: Max. 200

Splicing Time: 5 sec. [SM Fast] program, 10 sec. [SM G652] program

Heating Programs: Max. 30

Heating Time: Adjustable, 8 sec. with micro sleeves, 12 sec. with slim 60mm and 40mm sleeves

Splice Protector: 10~60mm

Splice Image Capture: Max. 800

Splice Data Storage: Max. 20000

Splice Loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: 0.02dB

Return Loss: >>60dB

Loss Estimation: Provided

Operation Condition: Altitude 0~5000m, Humidity 0~95%, Temperature -10~+50°C, Wind velocity up to 15m/s

Storage Condition: Humidity 0~95%, Temperature -40~+80°C (Battery -20~+40°C)

Tension: 1.96~2.25N

Screen: 4.3 inch high-light color screen

Fiber Magnification: 300x for X or Y single axis view, 750x for both X&Y dual axis view (zoom up)

Port: High speed USB

Electrode Life: 5000 ARC discharges

Power Supply: AC 100-240V, 50/60Hz

Battery Parameters: 5600mAh High capacity battery, more than 350 times splicing and heating

Tracking: GPS positioning and tracking system through inbuilt SIM card (Option)
