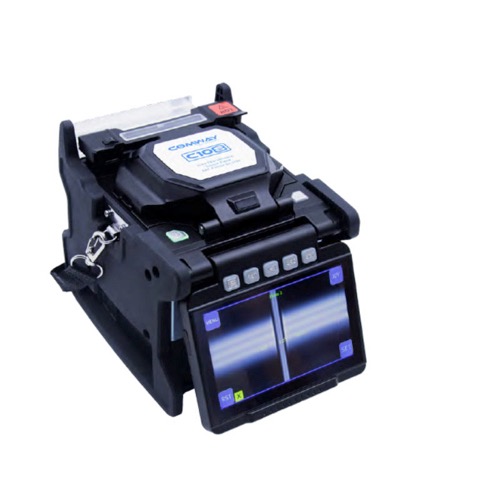

Comway C10S V2 Fusion Splicer (Splicing Time 5~10s)

Size & Weight: D170×W149×H154(mm), 1.97kg (2.51kg with battery)

Fiber Alignment: 6 motors core alignment

Fiber Type: SM (ITU-T G.652), EB (ITU-T G.654), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657), EDF

Splice Mode: Single fiber

Fiber Diameter: Cladding diameter 80~150µm, coating diameter 100~3000µm

Cleave Length:

250µm cladding diameter: 5~16mm

Over 250µm cladding diameter: 16mm

Splicing Programs: Max. 200

Splicing Time: 5 sec. [SM Fast] program, 10 sec. [SM G652] program

Heating Programs: Max. 30

Heating Time: Adjustable, 8 sec. typical

Splice Protector: 10~60mm

Splice Image Capture: Max. 800

Splice Data Storage: Max. 20000

Splice Loss: SM: 0.01dB, MM: 0.01dB, DS: 0.02dB, NZ/NZDS: 0.02dB, BI: 0.02dB

Return Loss: >>60dB

Loss Estimation: Provided

Operation Condition: Altitude: 0-5000m, Humidity: 0~95%, Temperature: -10~+50°C, Wind velocity: Up to 15m/s

Storage Condition: Humidity: 0~95%, Temperature: -40~+80°C (Battery -20~+40°C)

Tension: 1.96~2.25N

Screen: 5 inch touch screen

Fiber Magnification:

320x for both X&Y dual axis view

750x for X or Y single axis view (zoom up)

Port: High speed USB

Electrode Life: 5000 ARC discharges

Power Supply: AC 100-240V, 50/60Hz
