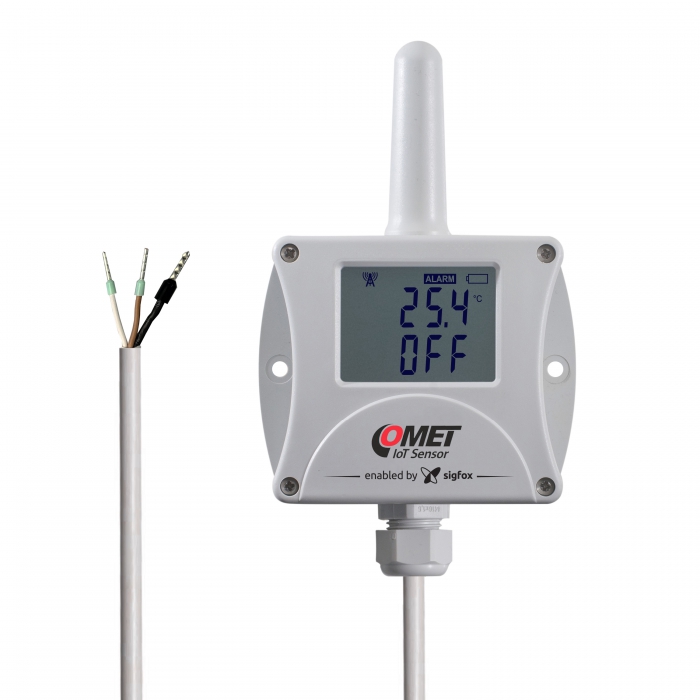

Comet W0850 Wireless thermometer with two two-state inputs (Lithium 3.6V, AA)

Measured value: Temperature, Two-state signal

Temperature sensor:

Measuring range: -30 to +60 °C

Accuracy: ±0.4 °C

Resolution: 0.1 °C

Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s): 10 minutes

Binary inout:

Parameters of the voltage contact: Input voltage level L:< 1.5 V;

Input voltage level H:> 4 V;

Minimum input voltage: 0 V;

Maximum input voltage: +30 V DC

Operating temperature: -30 to +60 °C

Channels: internal temperature sensor, binary input

Message transmission interval: adjustable 10 minutes, 20 minutes, 30 minutes, 1 hour, 3 hours, 6 hours, 12 hours, 24 hours

Alarm message sending interval: 10 minutes

Operating frequency: 868 MHz

Maximum transmission power: 25mW

Sigfox radiation class: 0U

Radio configuration zone: RC1 (operation is possible in Europe, Iran, Oman and South Africa)

Typical range of transmitter: 50 km in the field, 3 km in the city

Power: Lithium battery 3.6 V, AA size

Protection class: IP65

Dimensions: 126 x 89 x 40mm

Weight (including batteries): 150g

Included in delivery

W0850

Instruction Manual

Traceable Calibration Certificate

1x Lithium battery 3.6 V

FREE FULL VERSION Analytical Software COMET Vision

Datasheet

Manual
