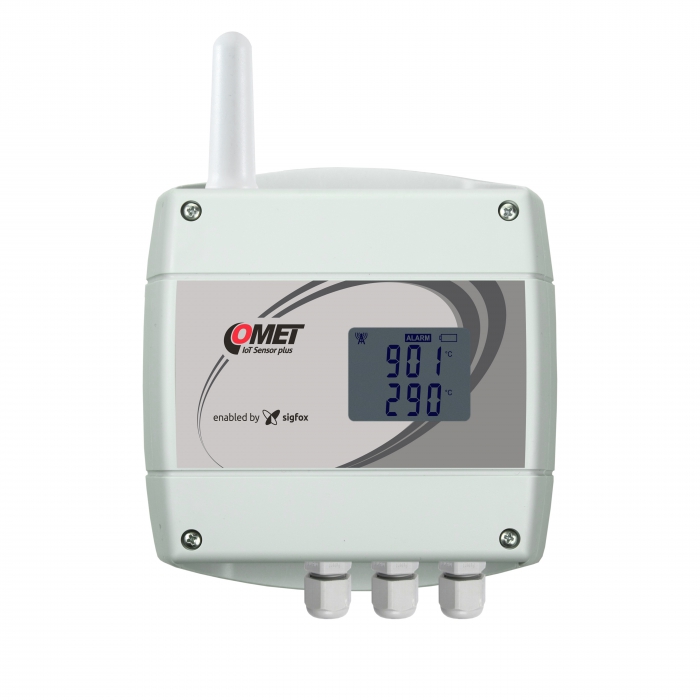

Comet W0846 IoT Wireless Temperature Sensor (-30~60°C, -200~1300°C)

Measured value: Temperature

Temperature sensor - internal sensor:

Measuring range: -30 to +60 °C

Accuracy: ±0.4°C

Resolution: 0.1 °C

Response time of temperature measurement (temperature step 20°C, air flow approximately 1m/s): t63 < 6 minutes; t90 < 15 minutes

Temperature sensor - thermocouble type K:

Measuring range: -200 to +1300 °C

Accuracy: ±0.4°C

Resolution: ± (|0.3 % of the measurement value|+1.5 °C)

Response time: according to the connected thermocouple

Operating temperature: -30 to +60 °C

Channels: 3x thermocouple; 1x internal temperature sensor

Message transmission interval: adjustable 10 minutes, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours

Operating frequency: 868 MHz

Maximum transmission power: 25mW

Sigfox radiation class: 0U

Radio configuration zone: RC1

Typical range of transmitter: 50 km in the field, 3 km in the city

Power Lithium battery: 3.6 V, C size, capacity 8.5 Ah

Number of battery slots: 2

Protection class: IP65

Dimensions: 179 x 134 x 45 mm without connectors

Weight (including batteries): 350g

Included in delivery

W0846

Instruction Manual

Traceable Calibration Certificate

1x Lithium battery 3.6 V

FREE FULL VERSION Analytical Software COMET Vision

Datasheet

Manual
