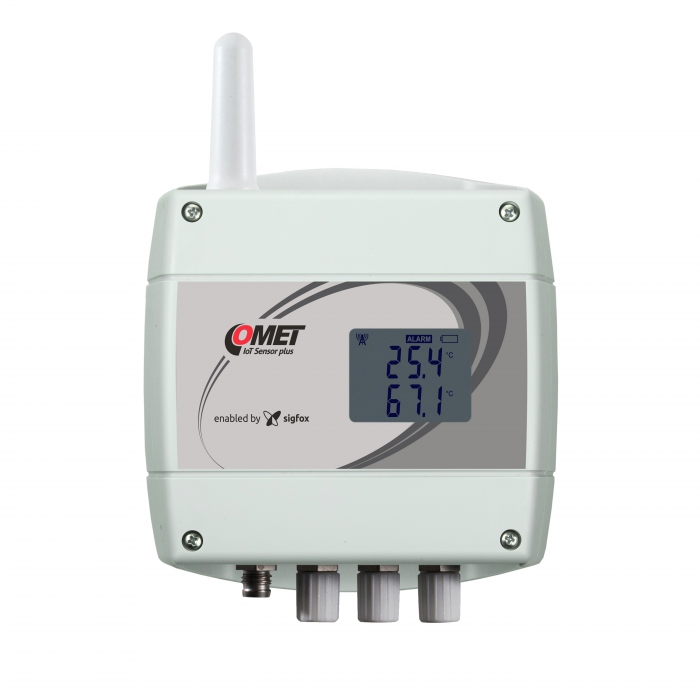

Comet W0841 IoT Wireless Temperature Sensor (-200~260°C)

Measured value: Temperature

Temperature sensor - external probe PT1000:

Measuring range: -200 to +260 °C

Accuracy: ±0.2 °C in the range -200 to +100 °C; ±0.2 % from reading from +100 to +260 °C

Resolution: 0.1 °C

Response time of temperature measurement (temperature step 20°C, air flow approximately 1m/s): 10 minutes

Operating temperature: -30 to +60 °C

Channels: 4x external temperature probe; ELKA connector

Message transmission interval: adjustable 10 minutes, 20 minutes, 30 minutes, 1 hour, 3 hours, 6 hours, 12 hours, 24 hours

Operating frequency: 868 MHz

Maximum transmission power: 25mW

Sigfox radiation class: 0U

Radio configuration zone: RC1 (operation is possible in Europe, Iran, Oman and South Africa)

Typical range of transmitter: 50 km in the field, 3 km in the city

Power Lithium battery: 3.6 V, C size, capacity 8.5 Ah

Number of battery slots: 1

Protection class: IP60

Dimensions: 179 x 134 x 45 mm without connectors

Weight (including batteries): 350g

Included in delivery

W0841

Instruction Manual

Traceable Calibration Certificate

1x Lithium battery 3.6 V

FREE FULL VERSION Analytical Software COMET Vision

Datasheet

Manual
