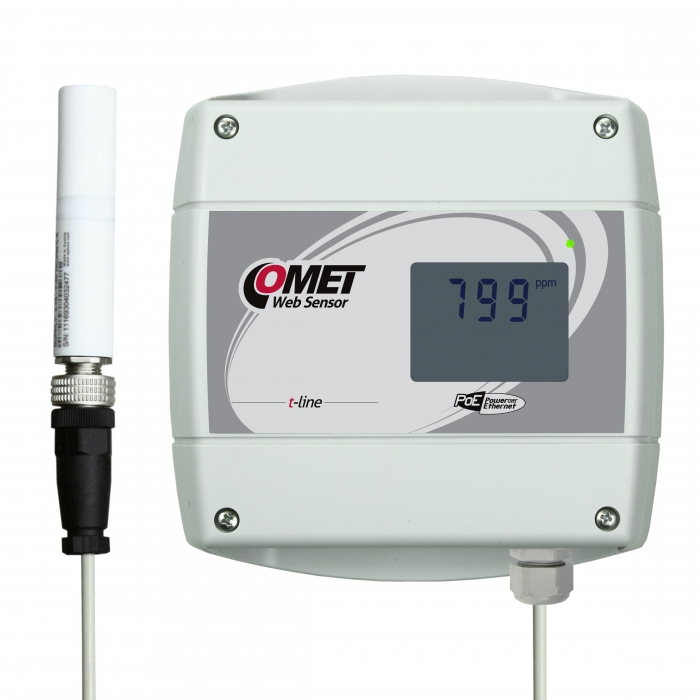

Comet T5641 WebSensor with PoE - remote CO2 concentration (PoE/ 5Vdc, Ethernet)

Measured value: CO2

CO2 sensor:

Measuring range: 0 to 10 000 ppm

Accuracy: ±(100ppm +5% from reading) at 25°C and 1013hPa

Resolution: 1 ppm

Operating temperature: -20 to +60 °C

Channels: 1x external CO2 sensor

Output: Ethernet

Measuring interval: 15 s

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail, SNMP Trap, Syslog

Power: Power over Ethernet according to IEEE 802.3af or 5Vdc

Protection class: IP30 electronics; IP65 sensors

Dimensions: 136 x 117 x 45 mm

External probe cable length CO2: 1 meter (optionally 2 or 4 meters)

Weight: approx. 380 g

Included in delivery:

T5641

Instruction Manual

Traceable Calibration Certificate

FREE software TSensor for Configuring of the Transmitter

COMET Cloud for 3 Months
