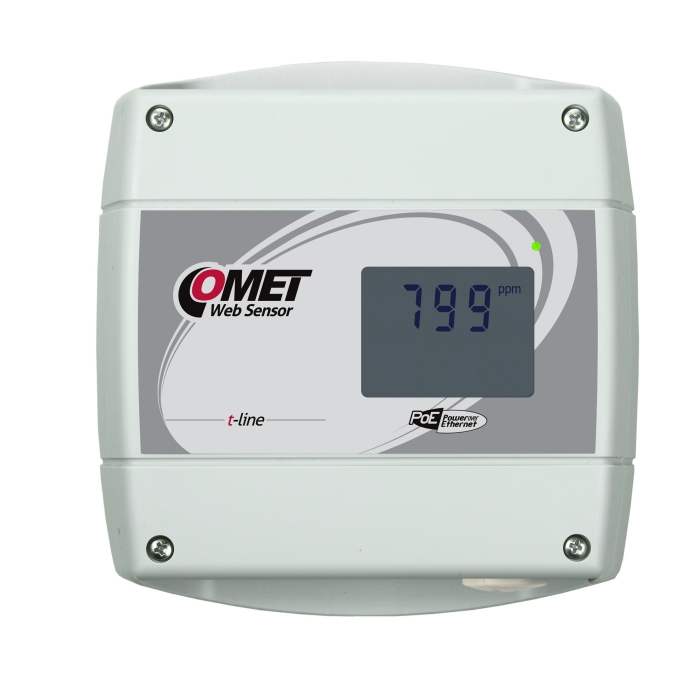

Comet T5640 WebSensor with PoE - remote CO2 concentration (9-30Vdc)

Measured value: CO2

Range of CO2 concentration measurement: 0 to 2000ppm

Accuracy of CO2 concentration measurement: ±(50ppm +2% from reading) at 25°C and 1013hPa

Optional range of CO2 concentration measurement: 0 to 10000ppm ±(100ppm +5% from reading) at 25°C and 1013hPa

Resolution: 1ppm

Measuring interval: 15s

Temperature operating range: -20 to +60°C

IP protection: IP30

LAN connection: RJ-45 connector, 10Base-T or 100Base-TX

Communication protocols: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail, SNMP Trap, Syslog

Configuration: T-Sensor, WWW configuration

Power: Power over Ethernet according to IEEE 802.3af or 5Vdc

Power connector: co-axial, diameter 5.5 x 2.1mm

Dimensions: 136 x 136 x 45mm (W x H x D)

Weight: approximately 300g

Included in delivery:

T5640

Instruction Manual

Traceable Calibration Certificate

FREE software TSensor for Configuring of the Transmitter

COMET Cloud for 3 Months
