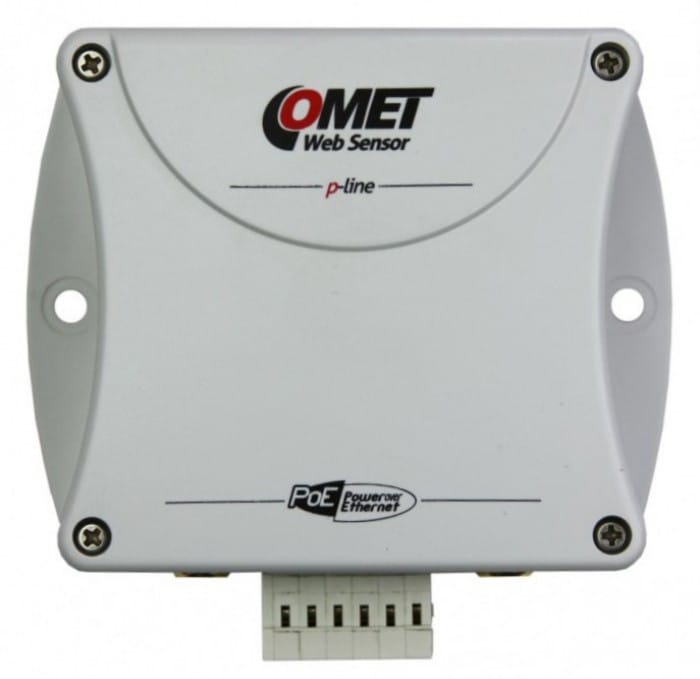

Comet P8652 Web Sensor with PoE - two channels with binary inputs (PoE/ 5Vdc, Ethernet)

Measured value: Temperature, Relative humidity, Two-state signal

Temperature sensor:

Measuring range: -55 to +105 °C

Accuracy: according to the connected probe DSxx

Resolution: 0.1 °C

Humidity sensor:

Measuring range: according to the connected probe DSxx

Accuracy: according to the connected probe DSxx

Resolution: 0.1% RH

Binary input:

Parameters of the voltage contact: Voltage input level for "L":< 1.0 V;

Voltage input level for "H":> 2.5 V;

Internal resistivity of the voltage source: < 2kOhm

Input voltage range: 0 to +30 V

Parameters of the voltage-free contact: Voltage on the unclosed contact: 3.3 V

Current through closed contact: 0.1 mA

Maximum resistivity of the contact: < 5kOhm

Operating temperature: -20 to +60 °C

Channels: 1x external temperature probe nebo 1x connectable temperature+humidity probe

Output: Ethernet

Measuring interval: 2 s

Available temperature units: degrees Celsius, degrees Fahrenheit

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail, SNMP Trap, Syslog

Power: Power over Ethernet according to IEEE 802.3af or 5Vdc

Protection class: IP30

Dimensions: 88 x 74 x 39.5 mm

Weight: approx. 125 g

Included in delivery:

P8652

Instruction Manual

Traceable Calibration Certificate

FREE software TSensor for Configuring of the Transmitter

COMET Cloud for 3 Months

EXTERNAL PROBES ARE NOT INCLUDED IN DELIVERY

P-line Web Sensor with PoE (Power over Ethernet feature) for measuring temperature, relative humidity and three binary inputs for two-states signals. Remote alarm.
