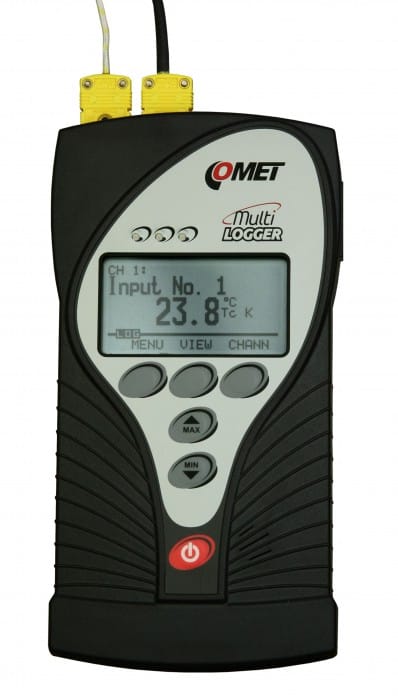

Comet M1200 Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port (AC adapter 230Vac/5Vdc)

Measured value: Temperature

Temperature sensor - Thermocouple K, N:

Measuring range: -200 to +1300 °C

Accuracy: ± 0.3 % from the Measured value + 1.5 °C

Resolution: 0.1 °C

Temperature sensor - Thermocouple J:

Measuring range: -200 to +750 °C

Accuracy: ± 0.3 % from the Measured value + 1.5 °C

Resolution: 0.1 °C

Temperature sensor - Thermocouple S:

Measuring range: 0 to +1700 °C

Accuracy: ± 0.3 % from the Measured value + 1.5 °C

Resolution: 0.1 °C

Temperature sensor - Thermocouple B:

Measuring range: 100 to +1800 °C

Accuracy: ± 0.3 % from the Measured value + 1 °C in the range +300 to +1800 °C

Resolution: 0.1 °C

Temperature sensor - Thermocouple T:

Measuring range: -200 to +400 °C

Accuracy: ± 0.3 % from the Measured value + 1.5 °C

Resolution: 0.1 °C

DC voltage:

Measuring range: -60 to +140 mV; -18 to +18 mV

Accuracy: ±100 µV; ±20 µV

Resolution: 0.1 µV

Operating temperature: -10 to +60 °C

Channels: 4x external temperature probe

Memory: 1 000 000 values (noncyclic record), 600 000 values (cyclic record)

Recording interval: 1s to 24 hours

Display and alarm refresh each 10 s

Recording mode: noncyclic - data logging stops after filling the memory

cyclic - after filling memory oldest data is overwritten by new

Available temperature units: degrees Celsius, degrees Fahrenheit

Communication interface: Ethernet, USB, RS232

Ethernet communication protocols: WWW, SNMPv1, XML, DATALINK

Alarm protocols: E-Mail

Power: AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)

Battery life: 3 - 4 weeks

Protection class: IP20

Dimensions (without connectors): 178 x 95 x 37mm, without attached cables

Weight (including batteries): approx. 380 g

Included in delivery:

M1200

Instruction Manual

Traceable Calibration Certificate

3x Rechargeable Battery AA

Power Supply

USB Cable

Wall Holder

FREE FULL VERSION Analytical Software COMET Vision

EXTERNAL PROBES ARE NOT INCLUDED IN DELIVERY
