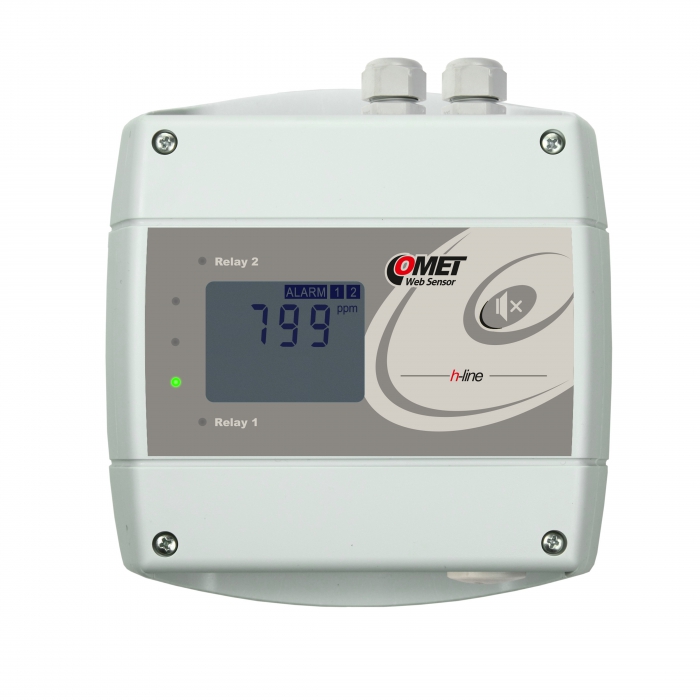

Comet H5524 Remote CO2 concentration (9-30Vdc, Ethernet)

Measured value: CO2

CO2 sensor:

Measuring range: 0 to 2000 ppm

Accuracy: ±(50ppm +2% from reading) at 25°C and 1013hPa

Resolution: 1 ppm

Relay outputs:

Quantity: 2

Maximal voltage: 50 V

Maximal current: 2 A

Maximal power: 60 VA

Operating temperature: -30 to +60 °C

Channels: internal CO2 sensor

Acoustic alarm: from built-in beeper - switchable

Output: Ethernet

Measuring interval: 15 s

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail (SMTP authentication is supported), SNMP Trap, Syslog

Power: 9-30 Vdc

Protection class: IP30

Dimensions: 136 x 213 x 45 mm

Weight: approx. 360 g

Included in delivery:

H5524

Instruction Manual

Traceable Calibration Certificate

FREE software TSensor for Configuring of the Transmitter

COMET Cloud for 3 Months

Datasheet
