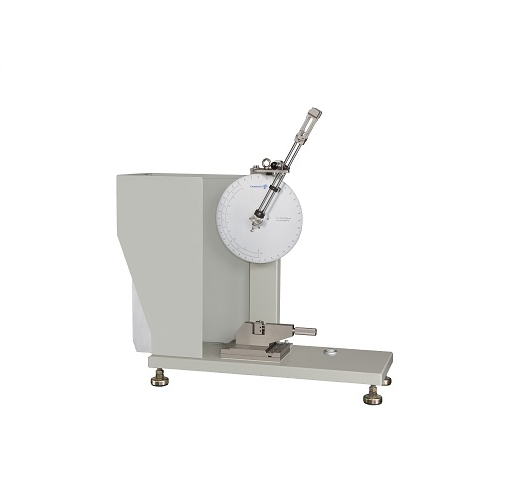

Test Capacity: Izod 1~25J; Charpy 1J~25
Best accurate range: 20~80% of the full capacity.
Test type: IZOD、CHARPY
Start impact Angle:150 degree
Dimension: 90 × 38 × 76 cm
Weight: 160 kg
Accessories: Operation manual, energy calculation software.
Optional: Related energy test hammer and different test vise. QC-640 V-shape notcher
Note: choose option suitable nessesary
Catalog
Option
- QC-639 CE Protection Cover
- ISO Serial Optional Accessories:
+ IP-0004-00I: Izod vise ISO 180
+ IP-0102-00I: Izod
hammer 1J (Shared by ISO / ASTM)
+ IP-0272-00I:
Izod hammer (Dual range 2.75J and 5.5J) (Shared
by ISO / ASTM)
Izod hammer (Dual range 11J and 22J) (Shared by
ISO / ASTM)
Izod hammer
(Dual range 25J and 50J)(Shared by ISO / ASTM)
+ IP-0005-00I: Charpy vise ISO 179 / For Speed 2.9m/s
Block for Charpy test Speed 2.9m/s
+ IP-0005-20I: Charpy vise ISO 179 / For Speed 3.8m/s
Charpy
hammer 1J / Speed 2.9m/s
Charpy
hammer 2J / Speed 2.9m/s
Charpy hammer
4J / Speed 2.9m/s
+ IP-0503-F0I: Charpy hammer 5J / Speed 2.9m/s
Charpy
hammer 7.5J / Speed 3.8m/s
Charpy
hammer 15J / Speed 3.8m/s
Charpy
hammer 25J / Speed 3.8m/s
Charpy hammer
50J / Speed 3.8m/s
- ASTM Serial Optional Accessories
+ IP-0004-00A: Izod vise ASTMD256
Izod
hammer 1J (Shared by ISO / ASTM)
+ IP-0272-F0A:
Izod hammer (Dual range 2.75J and 5.5J) (Shared
by ISO / ASTM)
Izod hammer (Dual range 11J and 22J) (Shared by
ISO / ASTM)
Izod hammer
(Dual range 25J and 50J) (Shared by ISO / ASTM)
+ IP-0005-00A:
Charpy vise ASTMD 6110
Charpy hammer
1J / Speed 3.46m/s
Charpy hammer
2.7J / Speed 3.8m/s
Charpy hammer
5.4J / Speed 3.8m/s
Charpy hammer
10.8J / Speed 3.8m/s
Charpy hammer 21.6J / Speed 3.8m/s
- QC-640: Impact Specimen V-Notcher
CQC-640 cutter (space for QC-640)
