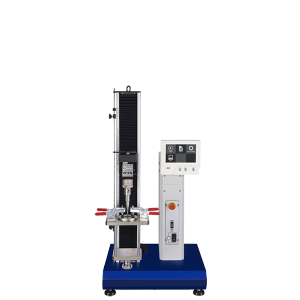

Cometech QC-548D2-M Computerized Tensile (compression) testing machin (5kN)

Max. Capacity: 5kN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force resolution: 23 bits

Force Precision: 1/100,000

Test troke: 800 mm (excluding grips)

Stroke resolution: 0.0125mm

Speed range: 8 ~ 550 mm/min (adjustable)

PC-Port: RJ45(TCP/IP)

Data sampling: Maximum 400 Hz

Hardware Safety Protection: Up and down limit & Emergency Stop Button Protection

Motor type: Servo Motor

Power Supply: Single phase 200 ~ 240VAC，5A

Dimension: 50× 53 × 145 cm

Weight: 80 kg

Option:

- Display panel: EM2FTP-001 or Software: SM2F0-04 or all (nessesary)

- Long extensometerQC-557

- Grips (nessesary)
