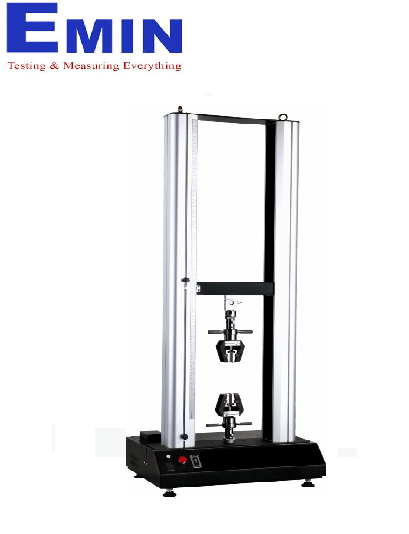

Manufacturer: Cometech
Model: QC-506M1
Origin: Taiwan
Warranty: 12 months
Max. Capacity: 20 KN
Force Resolution: 1/10,000
Test stroke: 800 mm (without grip); 1200 mm (extend height)
Stroke resolution: 0.001 mm
Space between columns: 425 mm (550mm、680mm、800mm, optional)
Speed range: 0.2 ~ 833 mm/min adjustable（Set up by computerized）
Speed precision: 0.2 ~ 833 mm/min ± 2%
PC-Port: TCP/IP
Motor type: Servo Motor
Data sampling rate: Faster 100HZ
Hardware safety protection: Up/down limit, emergency stop button
Power Supply: Single phase 200 ~ 240VAC，5A
Dimension: 86 × 60 × 150 cm
Weight: 145 kg
