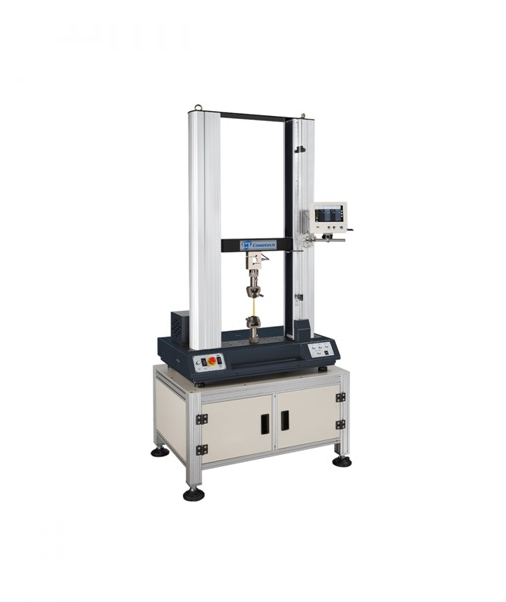

Cometech QC-506D1 extended extended UNIVERSA materials testing machine (20kN)

Max. Capacity: 20kN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution: 23 bits

Force Precision: 1/10,000

Test stroke: 1200 mm (w/o grip)

Stroke resolution: 0.00125mm

Space between columns: 425 mm (550mm, 680mm, 800mm for optional)

Speed range: 25~650 mm/min adjustable(By digital DIP switch)

Force reach 1000kg speed: Above 25mm/min

Force reach 2000kg Speed: Above 45mm/min

PC-Port: TCP/IP(connect software optional)

Data sampling rate:1200Hz (Max.)

Hardware safety protection: upper limit, lower limit, emergency stop

Motor type: DC Motor

Stiffness Slop:1484 kgf/mm

Power Supply:Single phase 110 / 220VAC, 5A

Dimension: 84 x 60 x 195 cm

Weight: 190kgf
