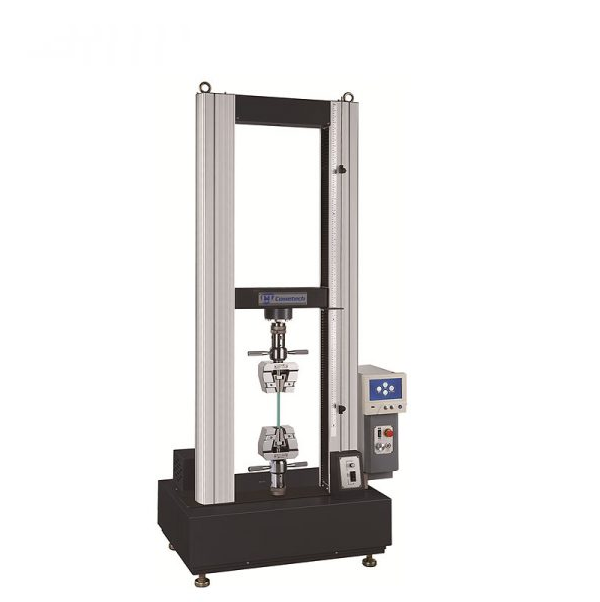

Cometech QC-505M1F Computerized Tensile (compression) testing machine (50kN, 1100 mm)

Max. Capacity: 50kN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution: 31 bits

Force Precision: 1/100,000

Test stroke: 1100 mm (w/o grip)

Stroke resolution: 0.0001mm

Space between columns: 420mm(550mm、680mm、800mm Optional)

Speed range: 0.2~ 600mm/min（Can be set by computer digital）

PC-Port: RJ45(TCP/IP)[Software Optional]

Data sampling rate:400Hz (Max.)

Hardware safety protection: upper limit, lower limit, emergency stop

Motor type: Servo Motor

Power Supply:Single phase 200 ~ 240VAC，8A

Dimension: 90× 60 × 195 cm

Weight: 280 kg

Option:

- Display panel: EM2FTP-001

- Software: SM1F0-04

- Long extensometerQC-557

- Grips (nessesary)

- Loadcell. If want to test under 10% Max. Capacity
