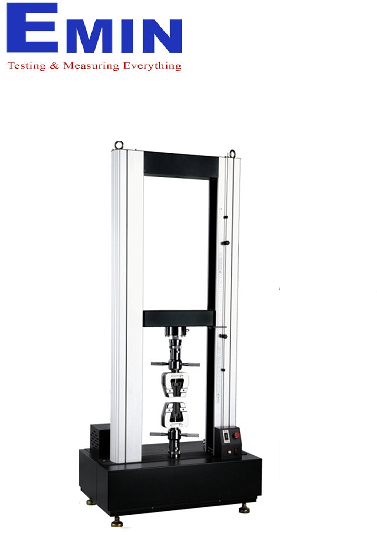

Cometech QC-505M1 Computerized Tensile testing machine (50kN)

Manufacturer: Cometech

Model: QC-505M1

Origin: Taiwan

Warranty: 12 months

Max. Capacity: 50kN

Force Resolution: 1/10000

Stroke: 1000mm （without grips）

Stroke Resolution: 0.001 mm

Space between columns: 420mm

Speed range: 0.15 ~ 600 mm /min adjustable（Set up by computerized）

Speed precision: 0.15 ~ 600 mm/min ± 2%

PC-Port: TCP/IP

Motor type: Servo drive

Hardware safety protection: Up/down limit, emergency stop button

Transmission: Precision reducer, ball screw which can significantly reduce the noise and transmission losses, increase the transmission efficiency.

Power: Single phase 200 ~ 240VAC，8A

Dimension: 90 × 60 × 200 cm

Weight: 360 kg
