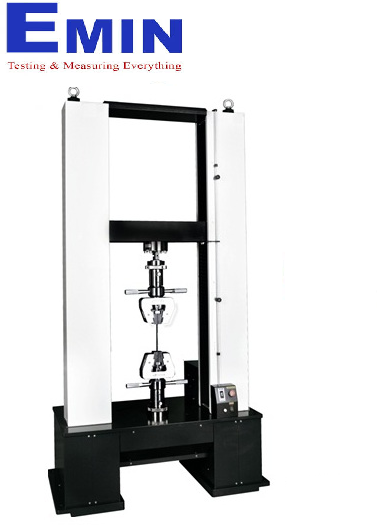

Cometech QC-503M1 Computerized Tensile testing machine (100kN)

Manufacturer: Cometech

Model: QC-503M1

Origin: Taiwan

Warranty: 12 months

Max. Capacity:100kN

Force Precision: 1/10,000

Force Resolution: 0.001 mm

Test stroke: 1100 mm (w/o grip)

Stroke resolution: 0.0001mm

Space between columns:550 mm

Speed range: 0.08 ~ 375 mm/min adjustable（Set up by computerized）

Speed precision: 0.08 ~ 375 mm/min ± 3%

PC-Port: TCP/IP

Hardware safety protection: Up/down limit, emergency stop button

Motor type: Servo drive

Transmission: Precision reducer, ball screw which can significantly reduce the noise and transmission losses, increase the transmission efficiency.

Power Supply:Single phase 200~240 VAC, 10 A

Dimension:120 x 60 x 220cm

Weight: 800 kg
