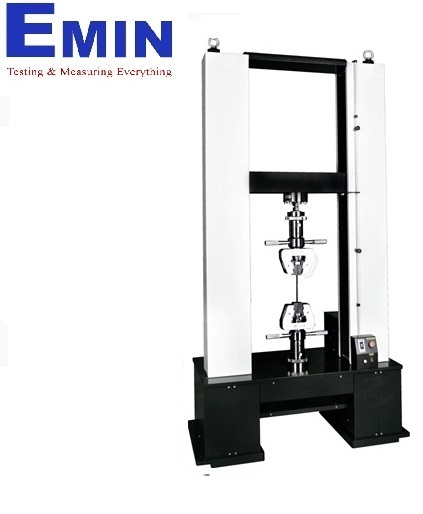

Cometech QC-500M2 COMPUTERIZED TENSILE TESTING MACHINE (500 kN)

Manufacturer: Cometech

Model: QC-500M2

Origin: Taiwan

Warranty: 12 months

Max. capacity:　 500 kN

Force Resolution:　 1/100,000

Test Stroke(w/o grip):　 1600 m

Stroke resolution:　 0.0001 mm

Space between columns:　 550 mm

Speed range:　 0.00015~333 mm/min

Speed precision:　 High speed mode:0.02~333 mm/min ± 1%

Low speed mode:0.00015 ~ 2 mm/min ± 3%

PC-Port:　 TCP/IP

Data sample rate:　 Maximum 200 Hz

Power Supply:　 3 phase 200~240 VAC，30 A

Motor type:　 Servo motor

Dimension:　 150 x 85 x 295 cm

Weight:　 2350 kg
