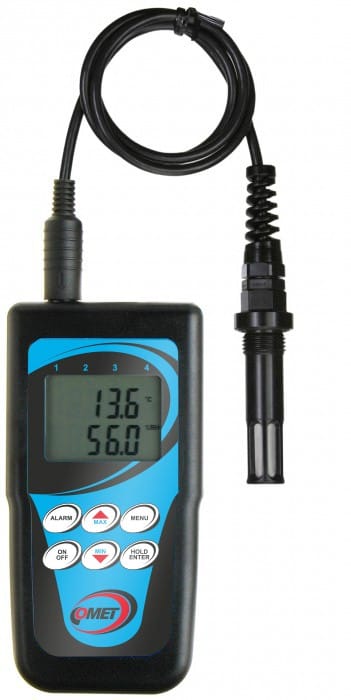

Comet D3121P Thermo-hygrometer for compressed air measurement (NiMH 9 V)

Measured value: Temperature, Relative humidity

Temperature sensor:

Measuring range: -30 to +105 °C

Accuracy: ±0.4 °C

Resolution: 0.1 °C

Humidity sensor:

Measuring range: 0 to 100 % RH

Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C

Resolution: 0.1% RH

Dew point:

Measuring range: -50 to +80 °C

Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %

Resolution: 0.1 °C

Operating temperature: electronics: -10 to +60 °C, external probe: -30 to +105 °C

Channels: 1x connectable temperature+humidity probe

Acoustic signalization + backlit LCD: YES

Memory: 16 000 values (non-cyclic record)

Recording interval: adjustable from 10 s to 24 h

Measuring interval and display reading refresh: 0.7 to 5 s

Recording mode: noncyclic - data logging stops after filling the memory

cyclic - after filling memory oldest data is overwritten by new

Real time clock: year, leap year, month, day, hour, minute, second

Power: battery 9 V or 12 Vss adaptor with NiMH 9 V battery

Protection class: IP20 electronics, IP40 sensors

Dimensions (without connectors): 191 x 71 x 27 mm; length/diameter of external probe 135/18 mm

External probecable length: 1 meter

Weight (including batteries): approx. 150 g

Included in delivery:

D3121P

Instruction Manual

Traceable Calibration Certificate

Battery 9 V

Mini USB Cable

Plastic Transport Case

Self Adhesive Dual Lock for Easy Installation

FREE FULL VERSION Analytical Software COMET Vision

Thermometer, hygrometer is designed for measurement and datalogging of temperature, relative humidity for compressed air up to 25 bars with 1m cable into the internal non-volatile memory.
