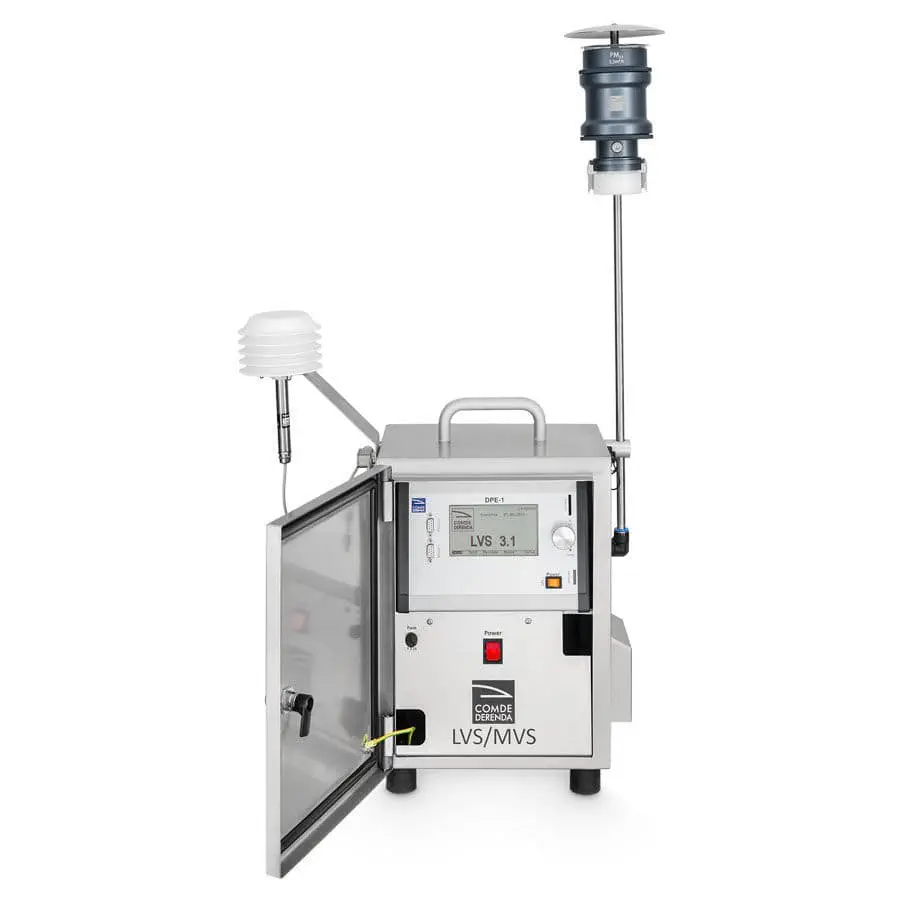

Comde-Derenda LVS 3.1 Low Volume Sampler (EN12341:2014)

Volumetric Flow Rate: 1.0 ... 3.5 m³/h (Nm³/h)

Power Consumption: approx. 240 VA

Sampling time: 1 min ... 1000 h

Power supply: 230 V, 50/60 Hz

Filter diameter: 47 mm

Diameter of the sampled filter surface: 41 mm

Dimensions (without external sensor, intake tube and inlet)

- Width: approx. 360 mm

- Height (with handle and feet): approx. 490 mm

- Depth (with lock): approx. 290 mm

- Weight: approx. 17 kg

Sound pressure level acc. to EN 3744:2010 in 8 m distance: < 31 dB(A)

Operating temperature range: –30 ... +50°C

Operating humidity range: 0 ... 100%RH

IP classification: IP55
