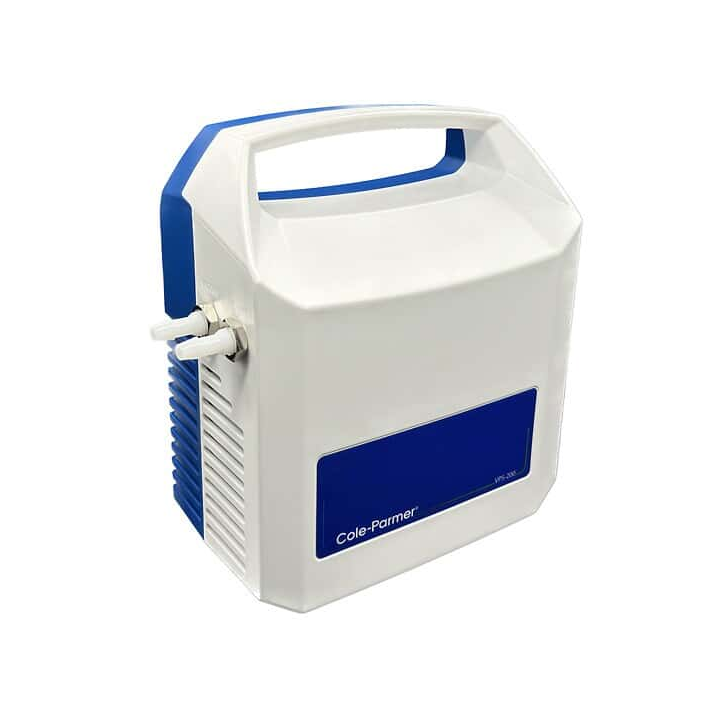

Cole parmer VPS-200 Air Admiral Air Diaphragm Vacuum (0.31 cfm; 230VAC)
Wetted Parts : Glass-Ølled PA66, Gas phase Rubber , PTFE, TPU, Acetal
Free-Air Capacity (CFM) : 0.31
Free-Air Capacity (LPM) : 8.8
Free-Air Capacity (LPH) : 526.7
Max Flow Rate (CFM) : 0.31
Max Flow Rate (Liters/min) : 8.8
Max Pressure (PSI) : 33
Max Pressure (bar) : 2.27
Max Vacuum (in Hg) : 21.3
Max Vacuum (mbar) : 721.3
Max Vacuum (mm Hg) : 541
Max Vacuum (torr) : 541
Port Size : 1/4\" hose barb
Max Temperature (° F) : 104
Max Temperature (° C) : 40
Duty Cycle : Continuous
Power (VAC) : 230
Power (amps) : 0.8
Power (Hz) : 50
Motor Type : Shaded pole
Shipping weight (kg): 1.6
Shipping weight(lbs): 3.5
Height (in) : 8.47
Width (in) : 4.3
Length (in) : 7.25
Height (cm) : 21.53
Width (cm) : 10.92
Length (cm) : 18.42
Height (mm) : 215.3
Width (mm) : 109.2
Length (mm) : 184.2
Motor hp : 1/11.5
