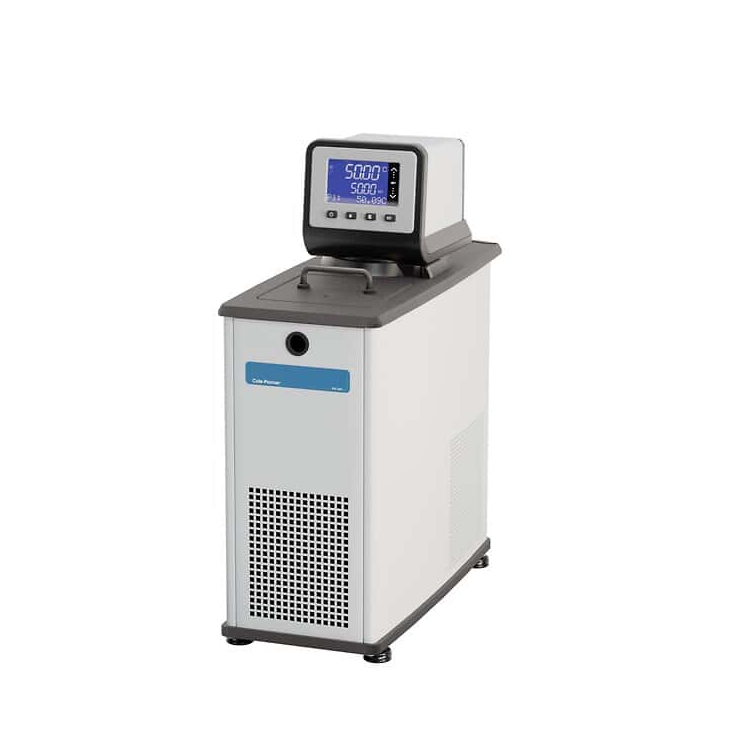

Cole parmer RHC-800 Digital Plus Refrigerated Circulator (7L, -20 ~200°C; 240 VAC)

Bath Type : Refrigerated circulating

Reservoir Capacity (L) : 7

Max Temperature (° C) : 200

Min Temperature (° C) : -20

Temperature Stability (° C) : ±0.01°C

Cooling Capacity At -20° C (watts): 30

Cooling Capacity At 0° C (watts): 120

Cooling Capacity At 20° C (watts): 200

Pump Type : Force and suction

Max Pump Pressure (PSI) : 3.6

Low-Level Cutoff : Yes

Width (in) : 8 45/64

Length (in) : 21 19/64

Height (in) : 24 19/64

Width (cm) : 22.1

Length (cm) : 54.1

Height (cm) : 61.7

Working Area Width (in) : 5 19/32

Working Area Length (in) : 6 11/64

Working Area Depth (in) : 5

Heater Wattage (watts) : 2200

Temperature Control : Digital Plus

Port Connections : 1/4\" (F) NPT

Drain Valve : Yes

Display Type : 3.75\" (9.5 cm) LCD, backlight

Wetted Materials : Stainless steel and polymers

Power (VAC) : 230

Power (Hz) : 50
