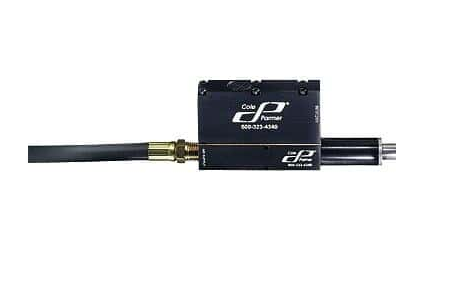

Cole parmer EW-78165-30 Venturi Vacuum Pump (1.2 cfm, 28"Hg)

Wetted Parts : Aluminum, Brass, Buna N

Free-Air Capacity (CFM) : 1.2

Free-Air Capacity (LPM) : 34

Free-Air Capacity (LPH) : 2040

Max Flow Rate (CFM) : 1.19

Max Flow Rate (Liters/min) : 34

Max Vacuum (in Hg) : 28

Air Input At 80 Psi (CFM) : 4.8

Air Input At 80 Psi (LPM) : 139

Port Size : air supply: 1/4\" NPT(F), vacuum: 1/8\" NPT(F)

Max Temperature (° F) : 140

Max Temperature (° C) : 60

Height (in) : 2.125

Width (in) : 0.75

Length (in) : 5.25

Height (cm) : 5.4

Width (cm) : 1.91

Length (cm) : 13.34

Height (mm) : 54

Width (mm) : 19.1

Length (mm) : 133.4
