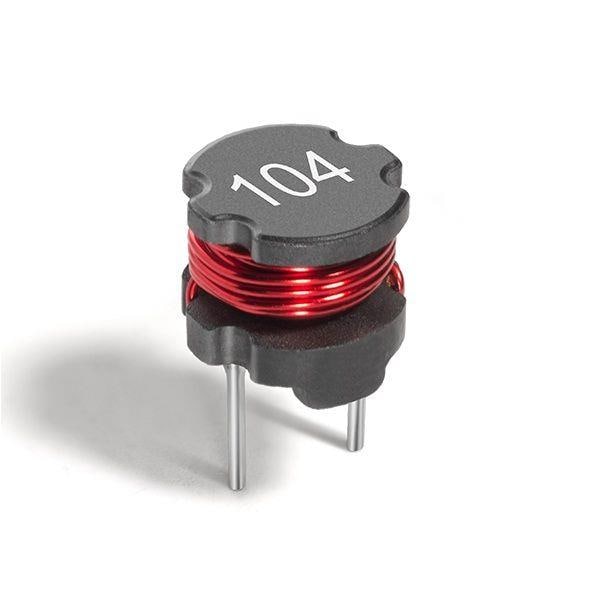

Coilcraft RFC0807B-825KE Power Inductors 8.2 mH UnShld 10% 133mA 25.5ohms
ManufacturerCoilcraft(View more products from this manufacturer)
ModelRFC0807B-825KE
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 7.5 mm
Diameter: 8.8 mm
Shielding: Unshielded
Tolerance: 10 %
Inductance: 8.2 mH
Application: Power
Termination: Standard
Unit Weight: 2.300 g
Lead Spacing: 5 mm
Core Material: Ferrite
Lead Diameter: 0.6 mm
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: Radial
Maximum DC Current: 133 mA
Maximum DC Resistance: 25.5 Ohms
Self Resonant Frequency: 600 kHz
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
