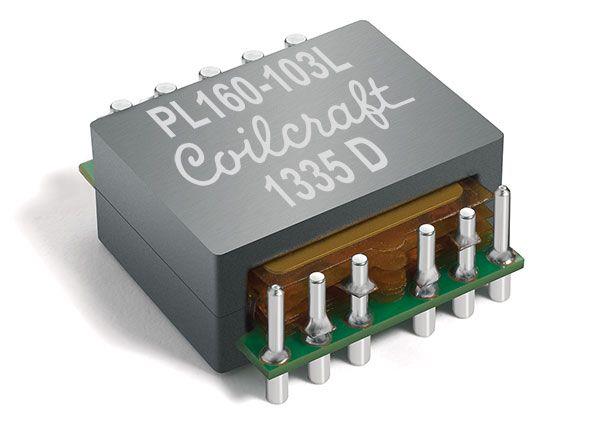

Coilcraft PL160-103L Planar PL160 160W 0.0185Ohm Planar Trnsfmr
ManufacturerCoilcraft(View more products from this manufacturer)
ModelPL160-103L
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 23.37 mm
Height: 9.53 mm
Length: 20.83 mm
Shielding: Shielded
Inductance: 290 uH
Application: Planar Transformers
Unit Weight: 12.800 g
Power Rating: 160 W
Core Material: Ferrite
Frequency Range: 200 kHz to 700 kHz
Isolation Voltage: 1.5 kV
Termination Style: Quick Connect
Number of Channels: Single
Primary Resistance: 18.5 mOhms, 21.5 mOhms
Secondary Resistance: 6.8 mOhms
Maximum DC Resistance: 21.5 mOhms, 18.5 mOhms, 6.8 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
