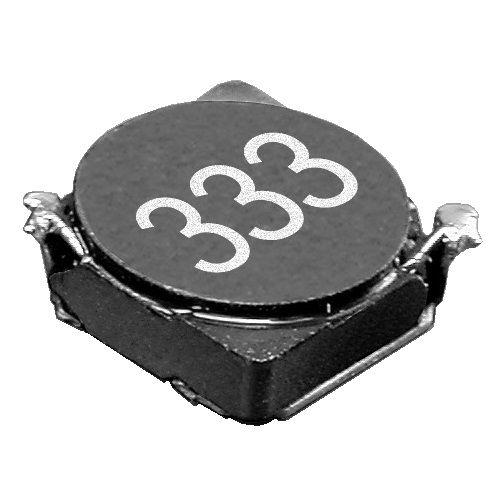

Coilcraft MSS6122-393MLC Power Inductors 39uH Shld 20% 1A 540mOhms AECQ2
ManufacturerCoilcraft(View more products from this manufacturer)
ModelMSS6122-393MLC
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 6.1 mm
Height: 2.2 mm
Length: 6.1 mm
Shielding: Shielded
Tolerance: 20 %
Inductance: 39 uH
Application: Power
Termination: Standard
Unit Weight: 230 mg
Core Material: Ferrite
Qualification: AEC-Q200
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Maximum DC Current: 1 A
Maximum DC Resistance: 540 mOhms
Self Resonant Frequency: 19 MHz
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
