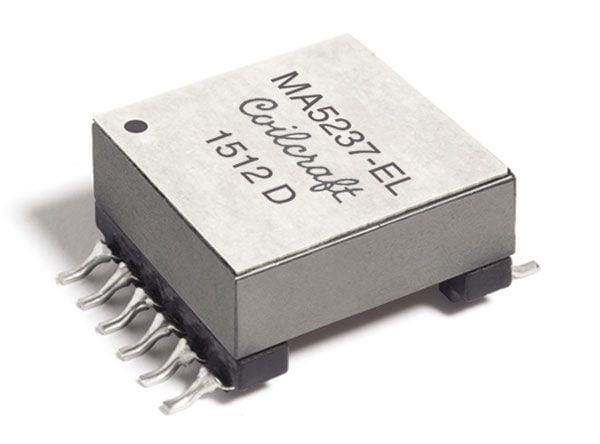

Coilcraft MA5237-ELB Flyback Transformer for MAX17498B SMT
ManufacturerCoilcraft(View more products from this manufacturer)
ModelMA5237-ELB
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 17 mm
Height: 10.8 mm
Length: 19.05 mm
Shielding: Unshielded
Inductance: 60 uH
Unit Weight: 7.100 g
Core Material: Ferrite
Isolation Voltage: 3.5 kV
Termination Style: SMD/SMT
Maximum DC Current: 1.5 A
Number of Channels: 1 Channel
Primary Resistance: 110 mOhms
Secondary Resistance: 35 mOhms
Maximum DC Resistance: 170 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
