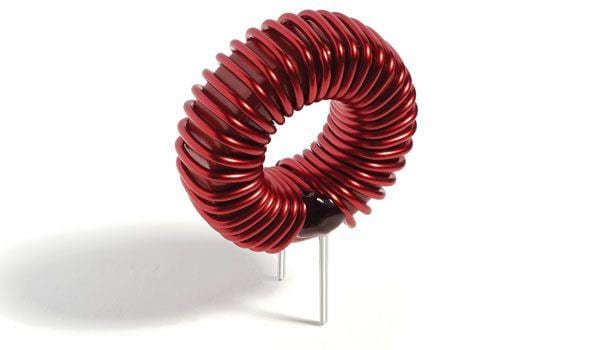

Coilcraft MA5172-AE Power Filter 10uH Unshld 10% 6.1A 26mOhms
ManufacturerCoilcraft(View more products from this manufacturer)
ModelMA5172-AE
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 12.3 mm
Diameter: 28.6 mm
Core Type: Toroidal
Shielding: Shielded
Inductance: 10 uH
Application: Class D Audio Amplifier
Termination: Standard
Unit Weight: 18 g
Lead Spacing: 10 mm
Core Material: Iron Powder
Lead Diameter: 1.07 mm
Mounting Style: PCB Mount
Test Frequency: 10 kHz
Termination Style: Radial
Maximum DC Current: 8.2 A
Saturation Current: 45 A
Maximum DC Resistance: 26 mOhms
Self Resonant Frequency: 25.5 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
