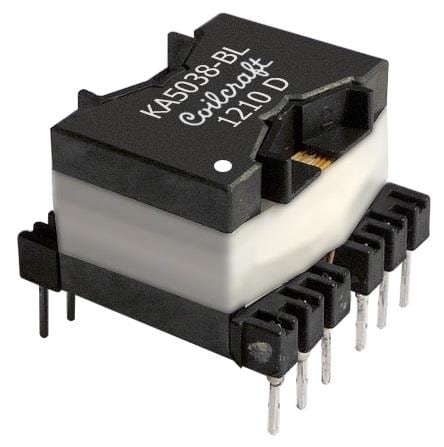

Coilcraft KA5038-BL Flyback KA5038 Flyback For ON Semi NCP1236
ManufacturerCoilcraft(View more products from this manufacturer)
ModelKA5038-BL
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 33.5 mm
Height: 23.24 mm
Length: 42 mm
Shielding: Unshielded
Inductance: 560 uH
Application: NCP1236 Fixed Frequency PWM Controller
Unit Weight: 60.200 g
Power Rating: 66 W
Current Rating: 3.5 A
Frequency Range: 50 kHz
Isolation Voltage: 3 kV
Termination Style: Through Hole
Maximum DC Current: 2.8 A
Number of Channels: Single
Primary Resistance: 198 mOhms
Secondary Resistance: 7 mOhms
Maximum DC Resistance: 236 mOhms, 7 mOhms, 198 mOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
