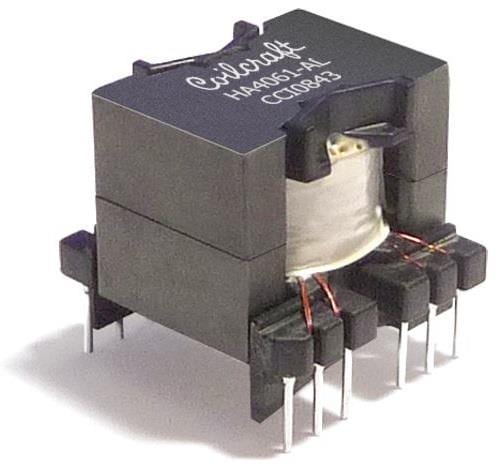

Coilcraft HA4061-AL Flyback HA4061 For LT 3751 500V 5A
ManufacturerCoilcraft(View more products from this manufacturer)
ModelHA4061-AL
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 27.9 mm
Height: 25.3 mm
Length: 29.8 mm
Shielding: Unshielded
Inductance: 125 uH
Application: LT3751 Capacitor Charger Controller
Unit Weight: 37.300 g
Frequency Range: 100 kHz
Isolation Voltage: 3 kV
Termination Style: Through Hole
Maximum DC Current: 5 A
Number of Channels: Single
Primary Resistance: 203 mOhms
Secondary Resistance: 1.4 Ohms
Maximum DC Resistance: 1.4 Ohms, 203 mOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
