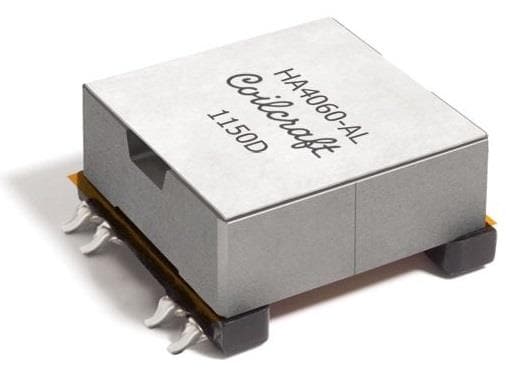

Coilcraft HA4060-AL Flyback HA4060 For LT3751 500V 2A
ManufacturerCoilcraft(View more products from this manufacturer)
ModelHA4060-AL
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 26 mm
Height: 14 mm
Length: 26.75 mm
Shielding: Shielded
Inductance: 300 uH
Application: LT3751 Capacitor Charger Controller
Unit Weight: 23.800 g
Frequency Range: 100 kHz
Isolation Voltage: 3 kV
Termination Style: SMD/SMT
Maximum DC Current: 2 A
Number of Channels: Single
Primary Resistance: 422 mOhms
Secondary Resistance: 1.58 Ohms
Maximum DC Resistance: 1.58 Ohms, 422 mOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
