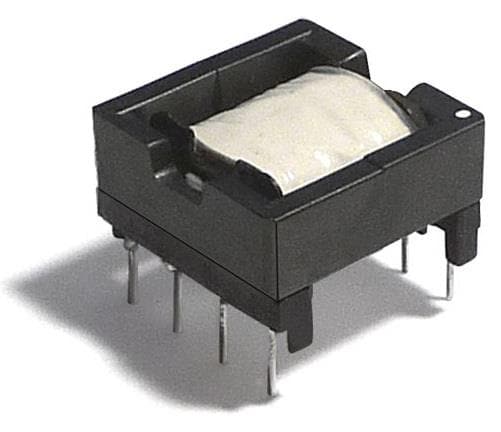

Coilcraft HA4018-AL Flyback HA4018 for GreenMode 5 V, -15 V 0.05 A
ManufacturerCoilcraft(View more products from this manufacturer)
ModelHA4018-AL
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 20.9 mm
Height: 12 mm
Length: 20.9 mm
Shielding: Unshielded
Inductance: 2.2 mH
Application: UCC28600 Green Mode Controller
Unit Weight: 9.700 g
Current Rating: 350 mA
Frequency Range: 50 kHz
Isolation Voltage: 3 kV
Termination Style: Through Hole
Maximum DC Current: 300 mA
Number of Channels: Single
Primary Resistance: 1.55 Ohms
Secondary Resistance: 61 mOhms, 305 mOhms, 450 mOhms
Maximum DC Resistance: 1.55 Ohms, 450 mOhms, 305 mOhms, 61 mOhms, 350 mOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
