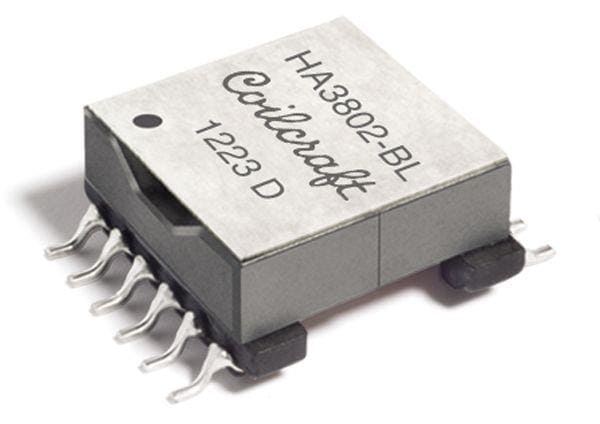

Coilcraft HA3802-BLD Flyback HA3802 Flyback For TI TPS23753
ManufacturerCoilcraft(View more products from this manufacturer)
ModelHA3802-BLD
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 14.98 mm
Height: 8.51 mm
Length: 17.2 mm
Shielding: Shielded
Inductance: 150 uH
Application: TPS23753 PoE Interface and Converter Controller
Unit Weight: 5.300 g
Power Rating: 10 W
Current Rating: 2 A
Frequency Range: 100 kHz
Isolation Voltage: 1.5 kV
Termination Style: SMD/SMT
Maximum DC Current: 1.2 A
Number of Channels: Single
Primary Resistance: 520 mOhms
Secondary Resistance: 27.5 mOhms
Maximum DC Resistance: 880 mOhms, 560 mOhms, 27.5 mOhms, 520 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
