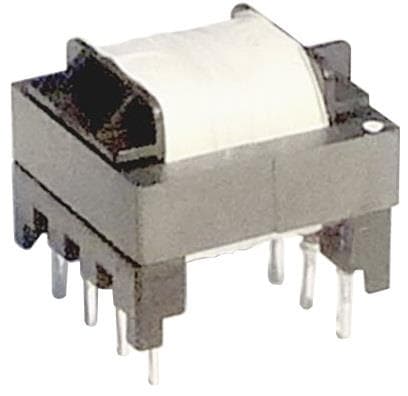

Coilcraft GA3544-BL Flyback GA3544 for TI UCD3K 5uH 12 V 0.2 A
ManufacturerCoilcraft(View more products from this manufacturer)
ModelGA3544-BL
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 21.1 mm
Height: 17.3 mm
Length: 21.1 mm
Shielding: Unshielded
Inductance: 2.3 mH
Application: UCD3K Digital Power Controller
Unit Weight: 13.400 g
Current Rating: 200 mA
Frequency Range: 100 kHz
Isolation Voltage: 3 kV
Termination Style: Through Hole
Maximum DC Current: 300 mA
Number of Channels: Single
Primary Resistance: 860 mOhms
Secondary Resistance: 109 mOhms
Maximum DC Resistance: 860 mOhms, 155 mOhms, 109 mOhms, 131 mOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
