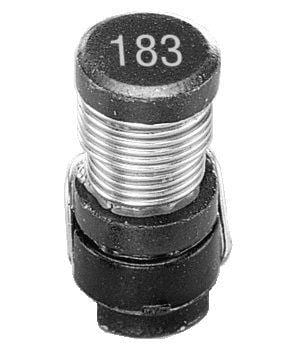

Coilcraft DC1012-273L Power Inductors 27uH Unshld 10% 3.64A 70mOhms AEC-Q2
ManufacturerCoilcraft(View more products from this manufacturer)
ModelDC1012-273L
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 15.2 mm
Diameter: 10 mm
Shielding: Unshielded
Tolerance: 10 %
Inductance: 27 uH
Application: Power
Termination: Standard
Unit Weight: 3 g
Lead Spacing: 5 mm
Lead Diameter: 0.6 mm
Qualification: AEC-Q200
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: Radial
Maximum DC Current: 3.64 A
Maximum DC Resistance: 70 mOhms
Self Resonant Frequency: 12 MHz
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
