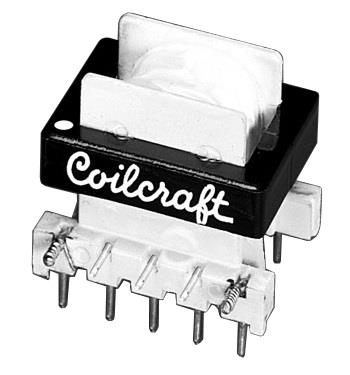

Coilcraft DA2077-AL Flyback DA2077 for NCP1027 10uH 5.0 V 2 A
ManufacturerCoilcraft(View more products from this manufacturer)
ModelDA2077-AL
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 27.94 mm
Height: 24.13 mm
Length: 27.94 mm
Shielding: Unshielded
Inductance: 3.4 mH
Application: NCP1027
Unit Weight: 16.500 g
Current Rating: 2 A
Frequency Range: 65 kHz
Isolation Voltage: 2 kV
Termination Style: Through Hole
Number of Channels: Single
Primary Resistance: 2.53 Ohms
Secondary Resistance: 42 mOhms
Maximum DC Resistance: 2.53 Ohms, 42 mOhms, 574 mOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
