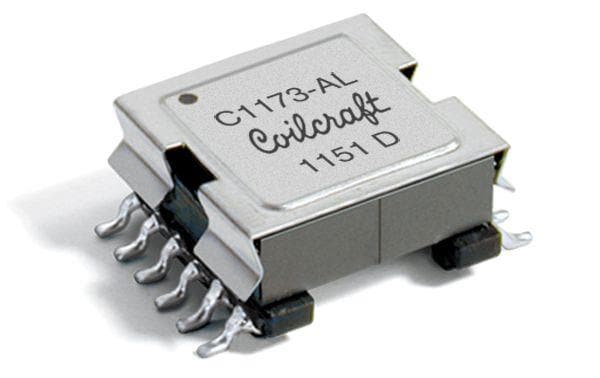

Coilcraft C1173-ALD Flyback C1173 for TPS23750 9.9uH 3.3 V 3 A
ManufacturerCoilcraft(View more products from this manufacturer)
ModelC1173-ALD
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 14.98 mm
Height: 8.51 mm
Length: 17.2 mm
Shielding: Shielded
Inductance: 166.5 uH
Application: TPS23750 Powered Device Controller
Unit Weight: 5.300 g
Current Rating: 10 mA
Frequency Range: 500 kHz
Isolation Voltage: 1.5 kV
Termination Style: SMD/SMT
Maximum DC Current: 1.2 A
Number of Channels: Single
Primary Resistance: 770 mOhms
Secondary Resistance: 20 mOhms
Maximum DC Resistance: 1.12 Ohms, 523 mOhms, 20 mOhms, 770 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
