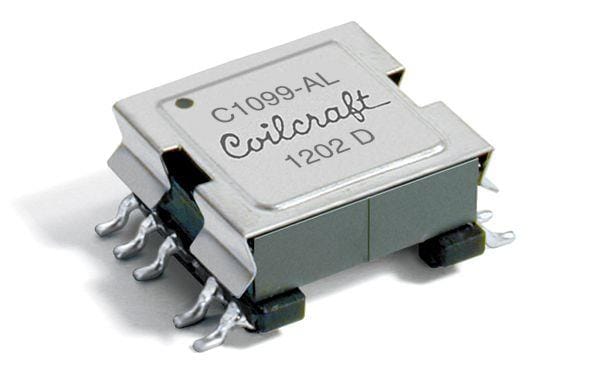

Coilcraft C1099-ALD Flyback C1099 Flybck Trnsfmr 126 uH 5% 0.9 A
ManufacturerCoilcraft(View more products from this manufacturer)
ModelC1099-ALD
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 14.98 mm
Height: 8.51 mm
Length: 17.2 mm
Shielding: Shielded
Inductance: 133 uH
Application: MAX5941A PoE Interface PWM Controller
Current Rating: 2.5 A
Frequency Range: 300 kHz
Isolation Voltage: 1.5 kV
Termination Style: SMD/SMT
Maximum DC Current: 900 mA
Primary Resistance: 283 mOhms
Secondary Resistance: 13 mOhms
Maximum DC Resistance: 480 mOhms, 13 mOhms, 283 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
