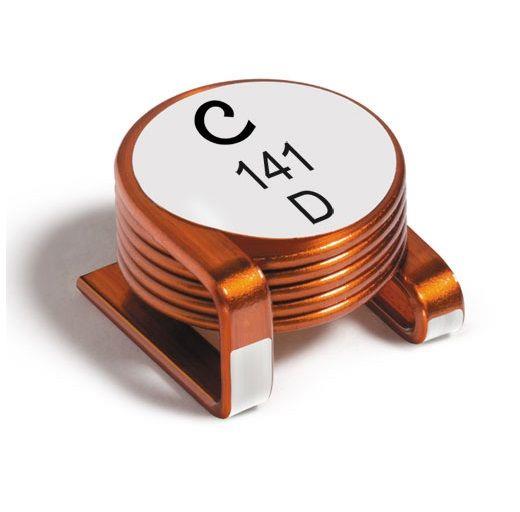

Coilcraft 1212VS-111MED High Frequency Power Choke 1212 117nH Unshld 20% 44A 1.43mOhms
ManufacturerCoilcraft(View more products from this manufacturer)
Model1212VS-111MED
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 11.5 mm
Height: 11.3 mm
Length: 12 mm
Core Type: Wirewound
Shielding: Unshielded
Tolerance: 20 %
Inductance: 117 nH
Application: High Current
Termination: Standard
Core Material: Air
Mounting Style: PCB Mount
Test Frequency: 1 MHz
Termination Style: SMD/SMT
Maximum DC Current: 44 A
Maximum DC Resistance: 1.43 mOhms
Self Resonant Frequency: 399 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
