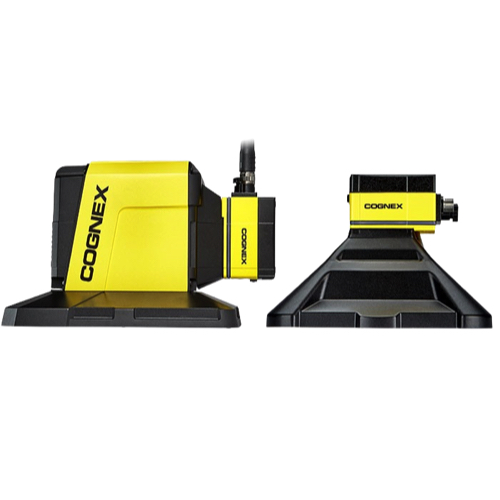

Cognex In-Sight 7905 - DPM Fixed Mount Scanner (35x29mm; 41mm)

Lighting Types: 660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2 quadrant, 4-quadrant 660 nm, 90°

Symbologies: 2D: Data Matrix (ECC 200), QR Code, Micro QR Code, UPC/EAN, Code 128, Code 39Code, PDF417

Field of View: 35 x 29 mm

Working Distance:  41 mm

Depth of Field (WD Tolerance):

5 mil symbols: +/- 1.5 mm

15 mil symbols: +/- 2.5 mm

Minimum X-Dimension:  3.75 mil (0.095 mm)

Image Sensor: Sony IMX264LLR 5 MP (2448 x 2048 pixels) 2/3 inch CMOS, global shutter 8.8 mm x 6.6 mm (H x V); 3.45 μm square pixels

Lens Type: 35 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens)

Communications: Ethernet

Power Consumption: 24 VDC±10%, 1.5 A max (36 W peak)

Weight: 1814 g (4.00 lb)

Dimensions: 236 x 193 x 145 mm

Maximum Codes per Second:

1D: ~20 codes/second

2D: ~10 codes/second

Maximum Linear Line Speed:  1.4 m/sec (4.6 ft/sec)

Coplanarity Tolerance: +/- 2° of coplanar
