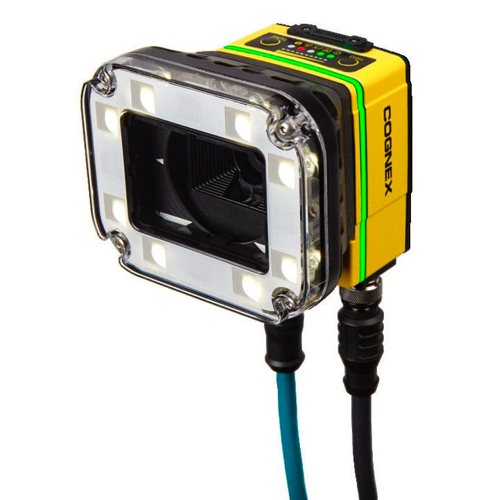

Cognex In-Sight 7802P Vision System (Monochrome: 55; 1920 x 1200)

Image Type: Monochrome

Performance Factor: 2.3x

Storage: 7.2 GB on board + 8 GB on SD card

RAM: 512 MB SDRAM

Sensor Type: CMOS, global shutter

Resolution: 1920 x 1200

Acquisition Rate: Monochrome: 55

HDR support: Yes

Lenses: C-mount, S-mount/M12, Autofocus

Lighting: Internal light, DataMan 360 light, external light powered by In-Sight or external light independent power

Internal lighting color: Red, white, IR, or blue

Indicator LEDs: SD card status, pass/fail LED, 360-degree viewing indicator ring, network LED and error LED

Built-in I/O: 1 dedicated trigger in, 1 input, 2 outputs, 2 bi-directional/configurable, and RS-232. Additional I/O available via external I/O modules: CIO-MICRO or CIO-1400

Power Supply: 24 VDC

Industrial M12 Connectors: 3: Power and I/O, Ethernet, and External light power/control

Standard: IP67 with included cable and lens cover

Network communication: 1G (1000)/100/10 Mbps

Industrial Protocols: OPC UA, EtherNet/IP with AOP, PROFINET Class B, iQSS, CC-Link IE Field Basic, SLMP/SLMP Scanner, Modbus TCP, IEEE 1588 (CIP Sync)

General Protocols: TCP/IP, UDP, FTP, SFTP, Telnet, SMTP, RS-232
