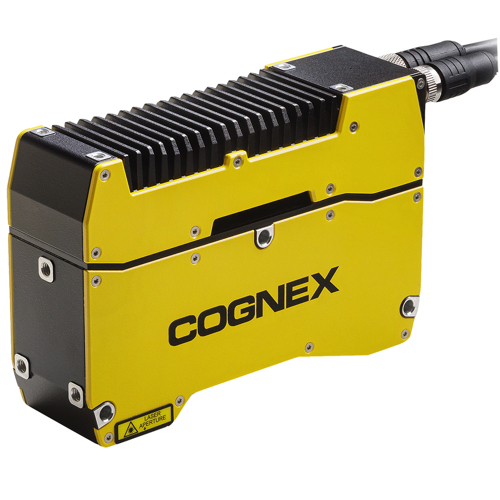

Cognex In-Sight 3D-L4000-L4050-1k Vision System (106.00 mm; 55.00 mm; 72.50 mm; 90.00 mm)

Dimensions (L x W x H): 150.5 mm x 101 mm x 45 mm

Weight: 0.94 kg

Scan Rate: Up to 4 kHz (after lowering the sensor window) (Maximum 6 kHz)

Measurement range (height): 106.00 mm

Near field of view (width): 55.00 mm

Middle field of view (width): 72.50 mm

Far field of view (width): 90.00 mm

Operating temperature: 0–45 °C (32–113 °F)

Storage temperature: -20–70 °C (-4–158 °F)

Humidity: < 80% non-condensing

Vibration: 10 to 57, dual amplitude 1.5 mm X,Y,Z, 3 hours per direction

Inputs: Trigger, differential/single ended encoder, laser interlock

Trigger: Input voltage limits: Trig+ - Trig - = -24 VDC to +24 VDC / Input ON: >10 VDC (>6 mA) / Input OFF: <2 VDC (<1.5 mA)

Power supply: 24 VDC +/- 10%, 750 mA minimum
