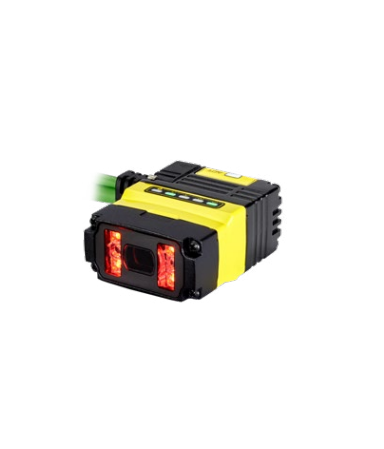

Cognex DMR-80X-154E-P Fixed Mount Scanner (1.6 MP, PoE, 1440 x 1080 pixels)

Resolution: 1.6 MP

Power & Communications: PoE

Light: Red HPIL

Lens: 16 mm HSLL

Cover: Half Polarized

Algorithms and Technologies: 1DMax, 2DMax, Hotbars, PowerGrid

Image Sensor: 1/3 inch CMOS

Image Sensor Properties: Diagonal 6.21 mm, 3.45 μm square pixels

Resolution: 1440 x 1080 pixels (1.6 MP)

Weight: 6.2 mm assembly: 99 g | 16 mm assembly: 132 g

Power: PoE Class 2

Power comsumption: Average: 4.3 W | Maximum: 6 W

Operating Temperature: 0-40° C (32–104° F)

Storage Temperature: -10–60° C (14–140° F)

Humidity: <95% non-condensing

Environmental:

DataMan 80: IP67+B26 *

DataMan 80 with Sound Amplifier: IP44 Altitude: 2000 m, indoor use only, pollution degree II

Shock: IEC 60068-2-27 - 500 shocks in each polarity of each (X, Y, and Z) axis, 3000 shocks total, semi-sinusoidal,11 g, 10 ms

Shock (Shipping & Storage): ISTA-1A Standardized Testing - Packaged Products 150 lb or less

Vibration IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10Gs (10 to 500 Hz at 100m/s2/15 mm)

Vibration (Shipping & Storage) FedEx Vibration Testing for packaged products 150 lbs or less

Codes:

1D barcodes: Codabar, Code 39, Code 128, Code 93, Code 25, Interleaved 2 of 5, Postal Codes, UPC/EAN/JAN, MSI

2D barcodes: Data Matrix (IDMax and IDQuick: ECC 0, 50, 80, 100, 140, and 200), QR Code, microQR, PDF 417, AztecCode, DotCode, MaxiCode
